    Ugoos AM6B Plus 2021

    $169.90 $199.99 You Save 15% ($30.09)

    AM6B Plus is a brand new remastered version of 2020 successor AM6 Plus with SoC Amlogic S922XJ, WiFi 6 module, and other improvements.

    AM6 Plus gets USB 3.0 Fast USB, Bluetooth 5.0, WIFI 5.0/2.4 GHz with MIMO RSDB Technology Support, and the whole bunch of brand unique Ugoos Settings on board.

    Device comes with OTA updater, so you no need to update firmware manually.

    Ugoos AM6B PlusUgoos AM6B PlusUgoos AM6B PlusUgoos AM6B plusUgoos AM6B PlusUgoos AM6B PlusUgoos AM6B plus

    Hardware Specs:
    Operation System Android 9.0
    Language English, Chinese …Multi-Language support
    CPU Amlogic S922XJ with 12nm，Quad core ARM Cortex-A73 and dual-core ARM Cortex-A53 CPU
    GPU ARM Mali TM-G52 MP6(6ppc)
    SDRAM LPDDR4 4GB
    Storage Capacity (Flash) 32GB （EMMC）
    WIFI 2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2×2 MIMO standard.
    Bluetooth Bluetooth 5.0 with LE technology
    The Extended Storage TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
    Power Supply DC 12V/2A
    HDR Support
    Interfaces:
    HDMI Output HDMI(2.1 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2)
    USB Port 1*USB 3.0 Fast Speed, 3*USB 2.0 Host
    Optical Output 1*SPDIF
    Led Work Light Support
    Network 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
    interface)
    Power Supply 1*DC Jack
    Media Parameter:
    Audio Container MP3,AAC,WMA,RM,FLAC,OGG
    Audio Out Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing I2S audio interface supporting 2-channel input and 8-channel (7.1) output
    Built-in serial digital audio SPDIF/IEC958 output and PCM input/output
    Built-in stereo audio DAC,
    Stereo digital microphone PDM input
    Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
    Video CODEC VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps
    H.264 AVC HP@L5.1 up to4K*2K@60fps
    H264 MVC up to1080P@60fps
    MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
    WMV/VC-1 5P/MP/AP up to 1080P@60fps
    AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps
    MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
    MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
    Realvideo 8/9/10 up to 1080P
    WebM up to VGA
    Multiple language and multiple format sub-title video support
    MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918)
    Supports JPEG thumbnail, scaling, rotation and transition effects
    Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm
    and *.jpg file formats
    Software Extension Support Google Play & APK install
    DLNA, Miracast Protocol Support DLNA, Miracast Protocol
    Remote Control Remote controller
    IM Software Support Skype/QQ/MSN/GTALK (Depends on APK ）
    Office Software WORD/EXCEL/PDF(Depends on APK install)
    Other Parameters:
    Operation Temperature 0~60℃
    Storage Temperature -10~60℃
    Humidity Environment 5%-90%(No condensation）
    Certificate CE, FCC

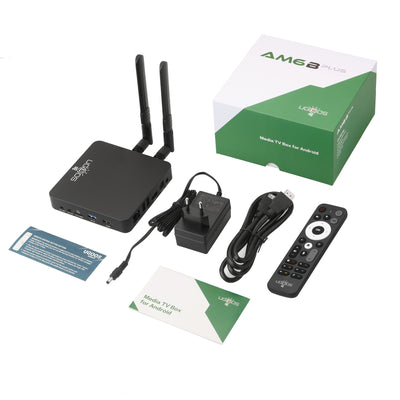

    Package:
    Dimensions 117*117*18.5mm
    Net Weight 300g
    Gift Box Size 162*162*80mm
