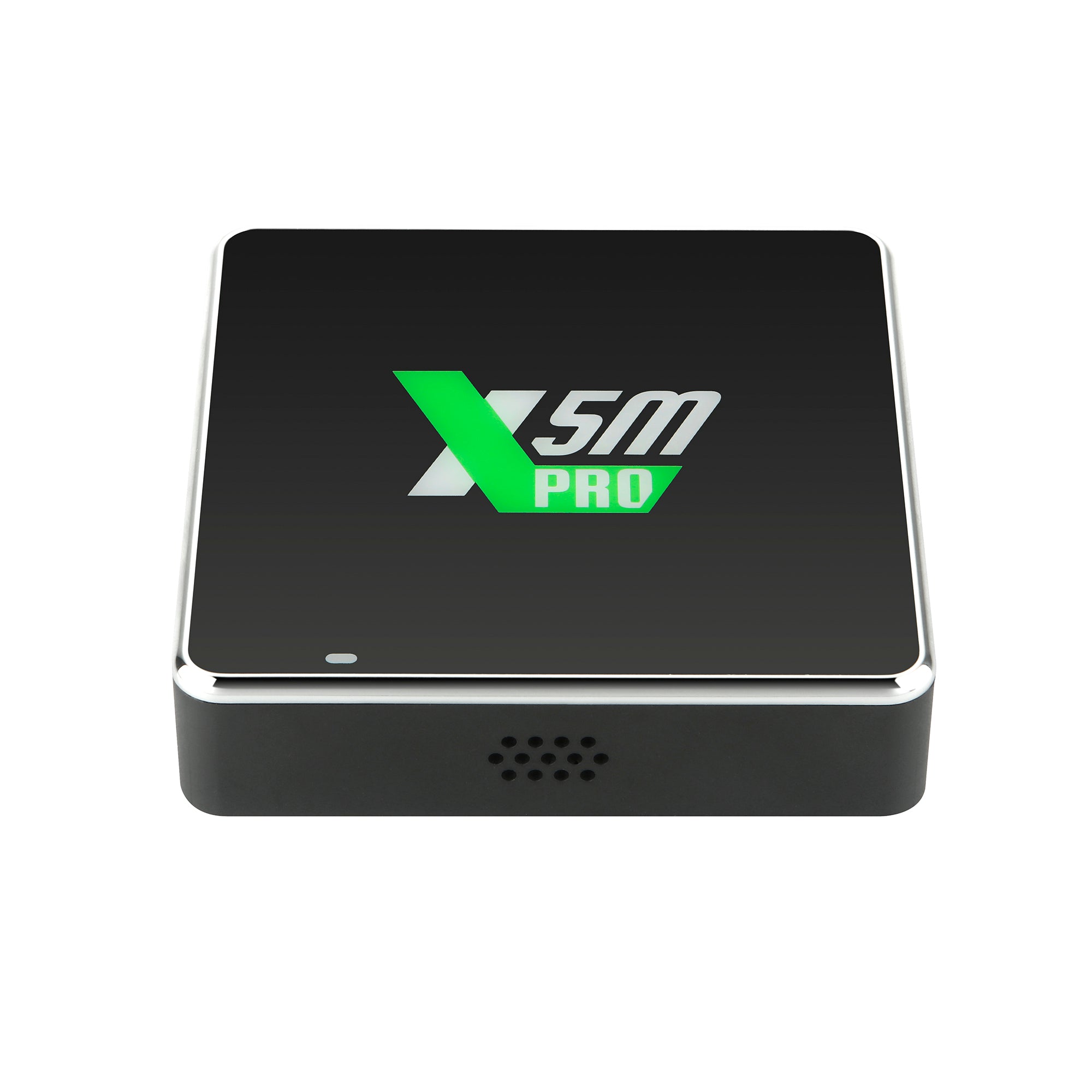

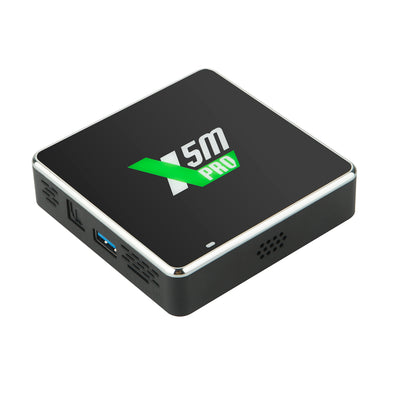

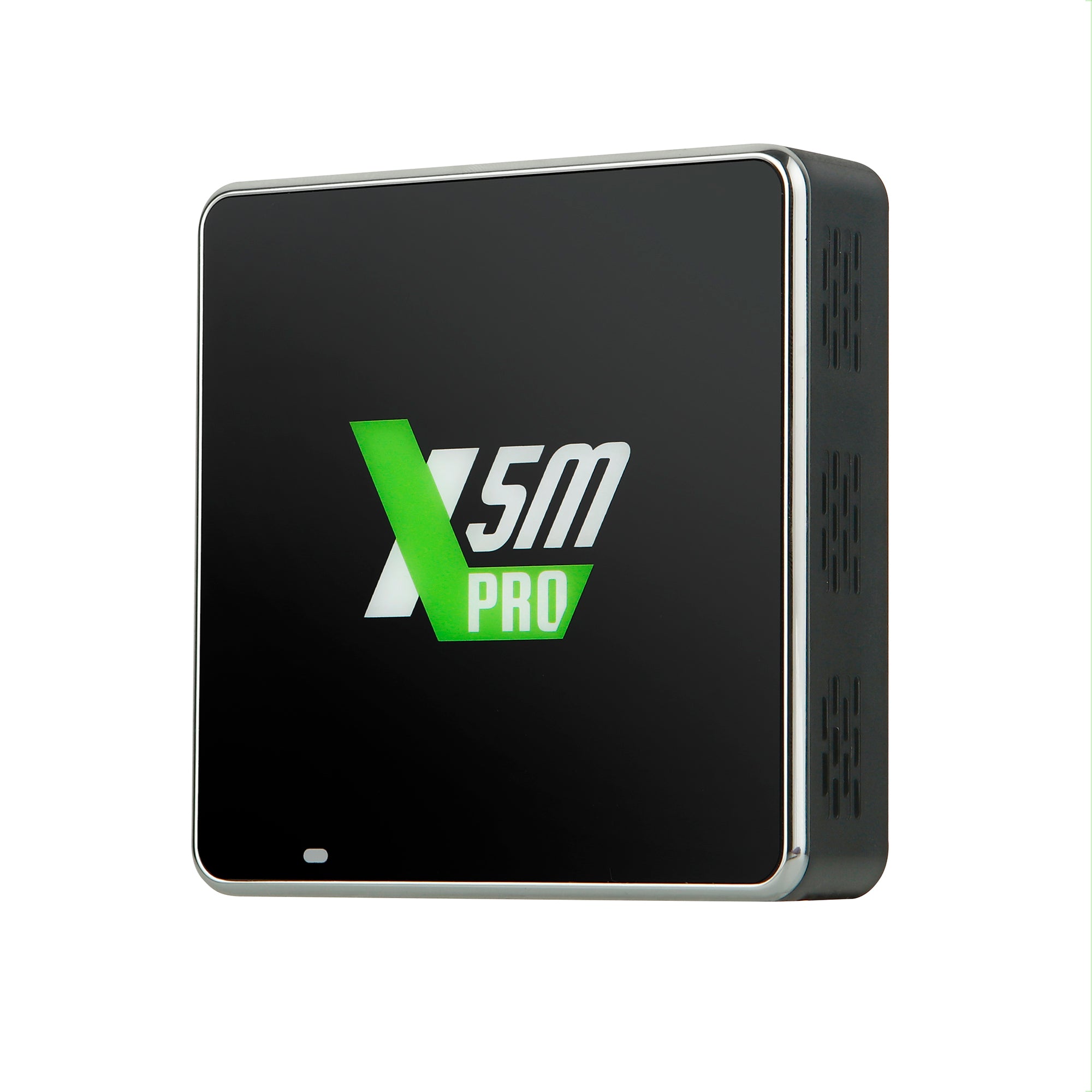

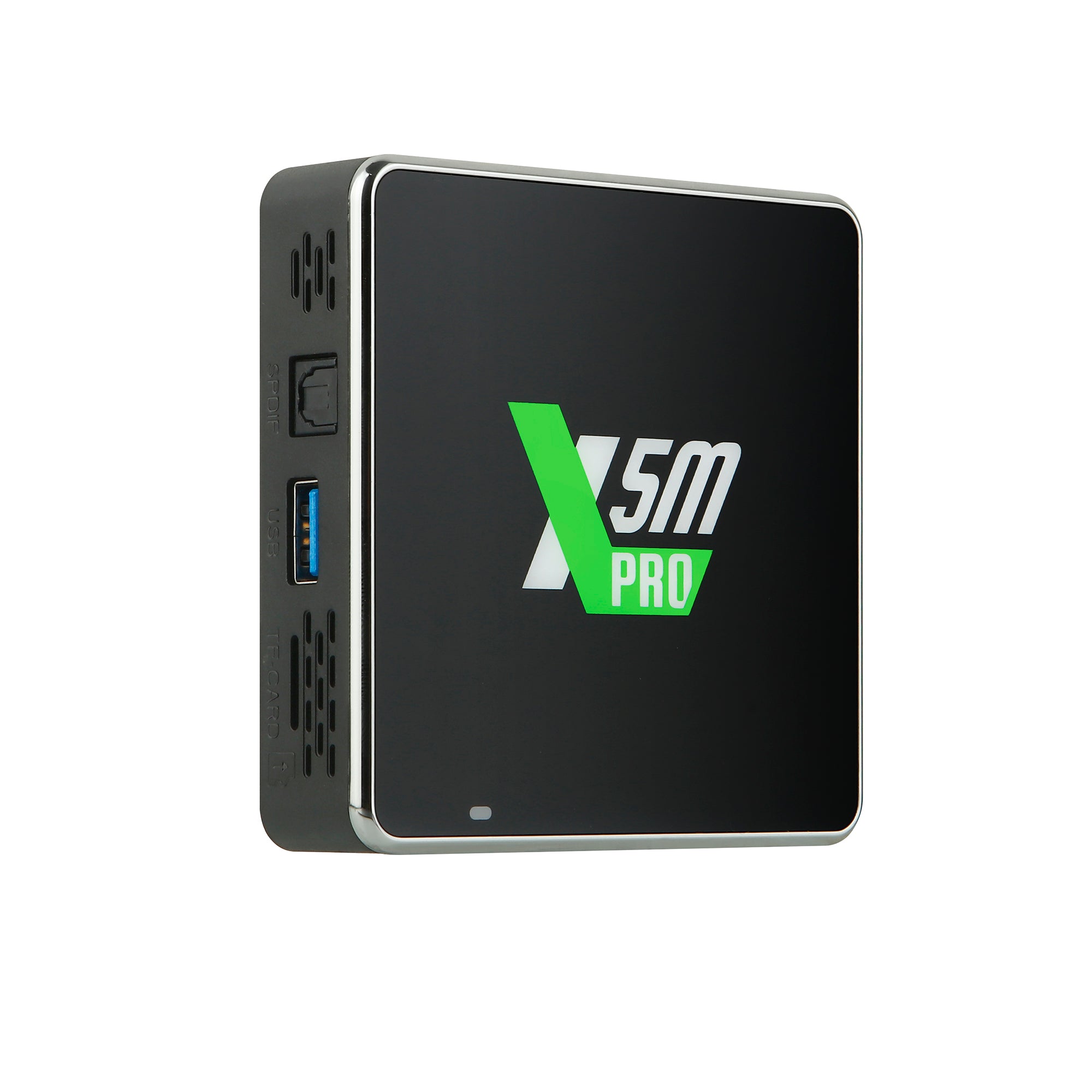

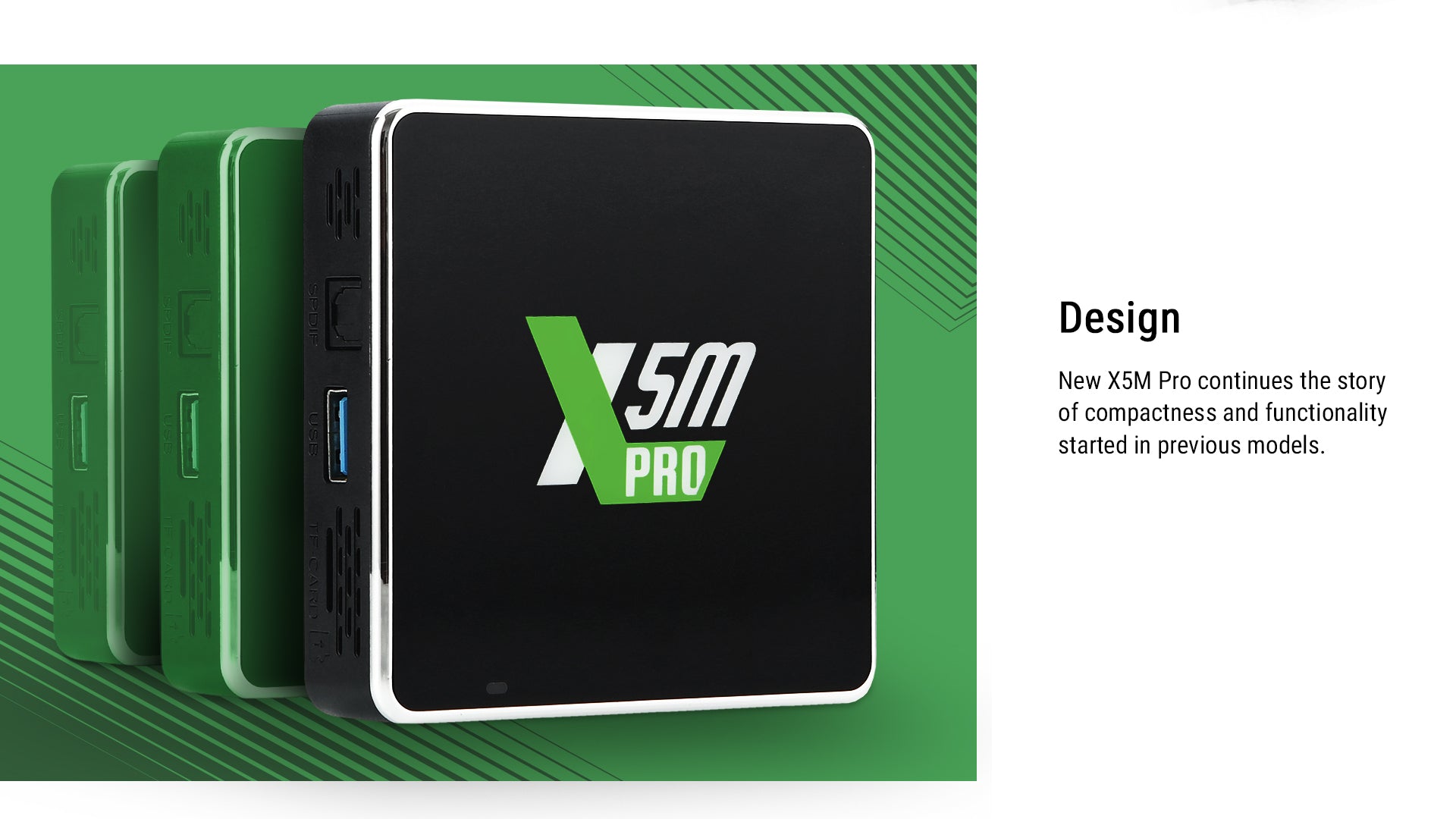

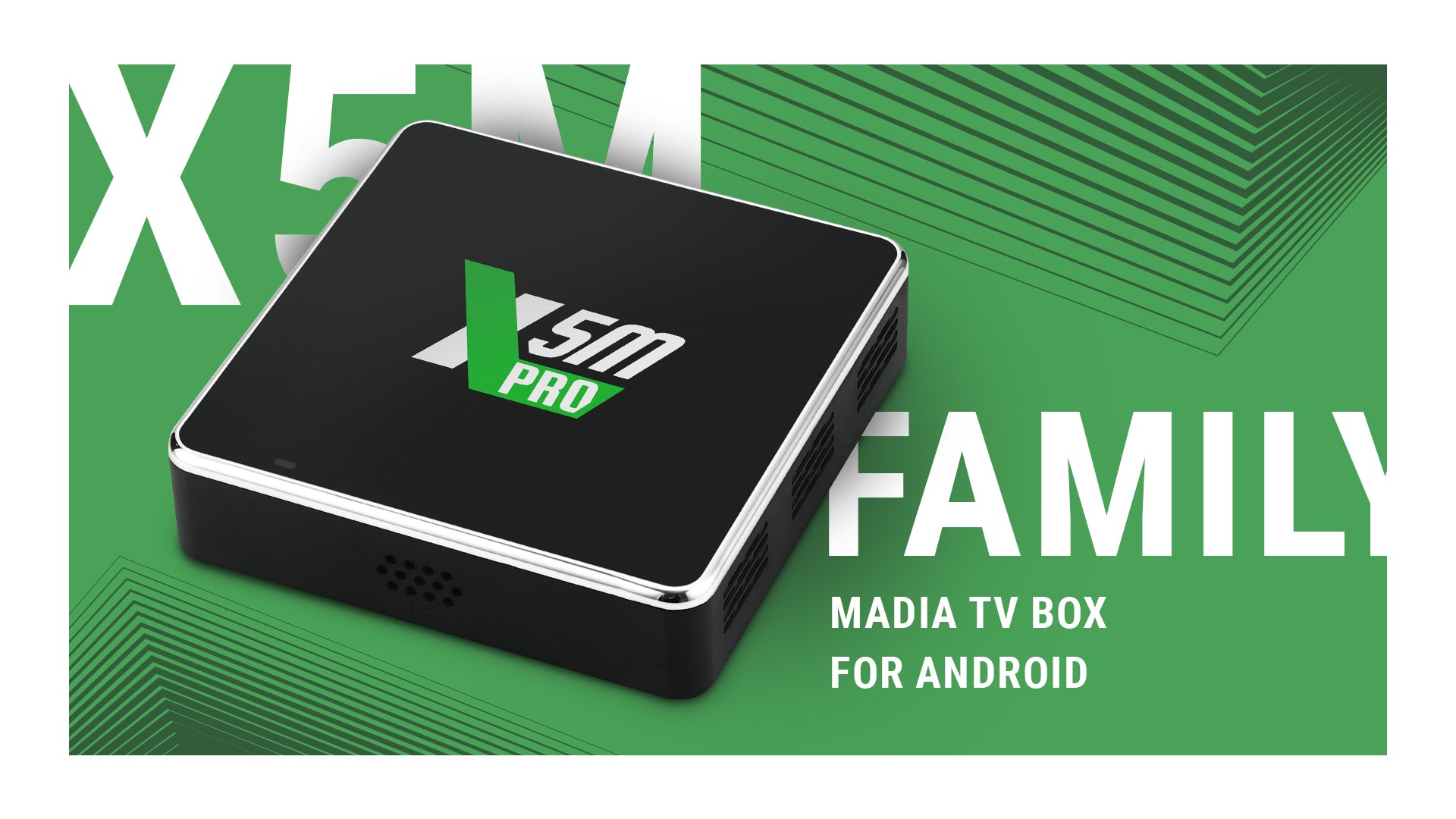

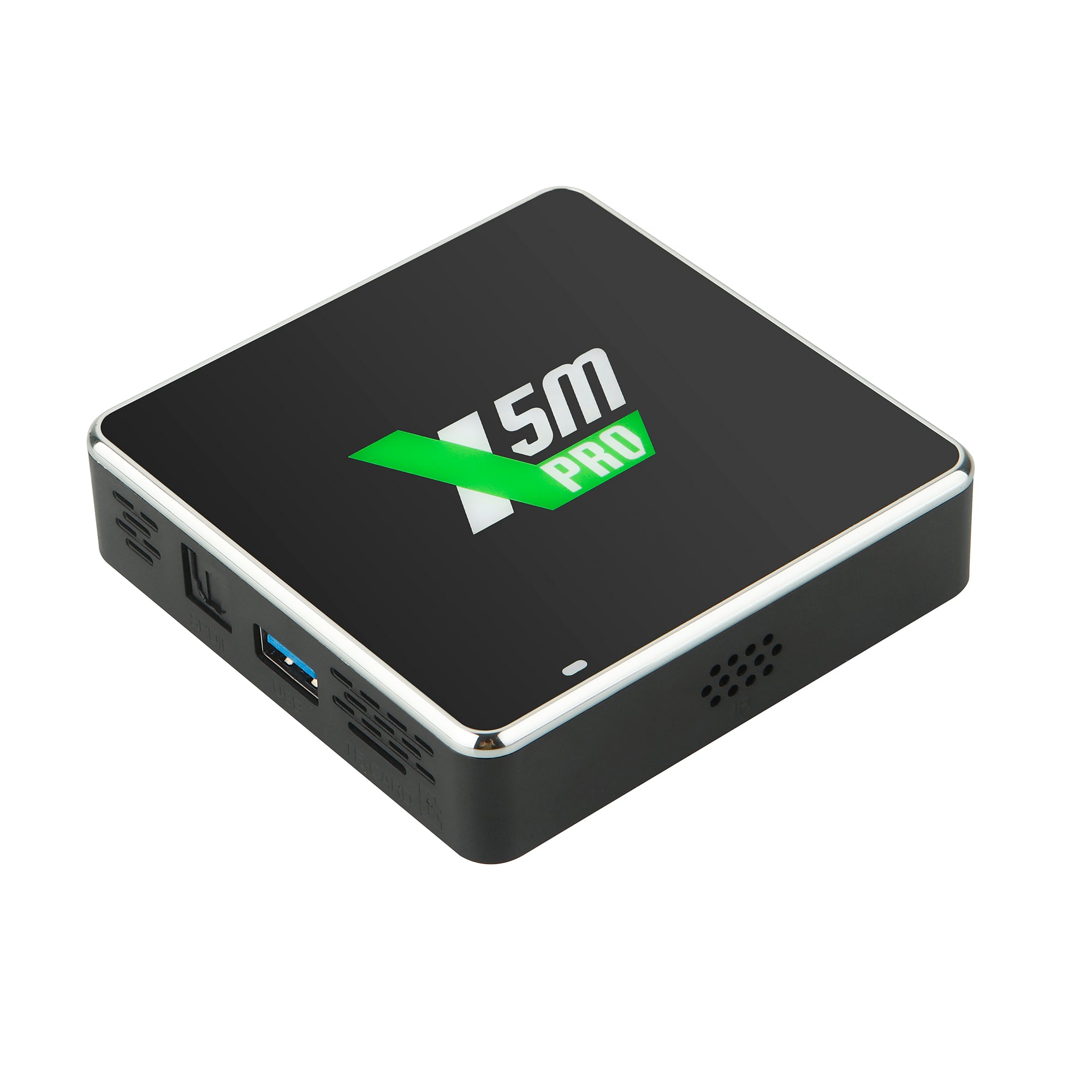

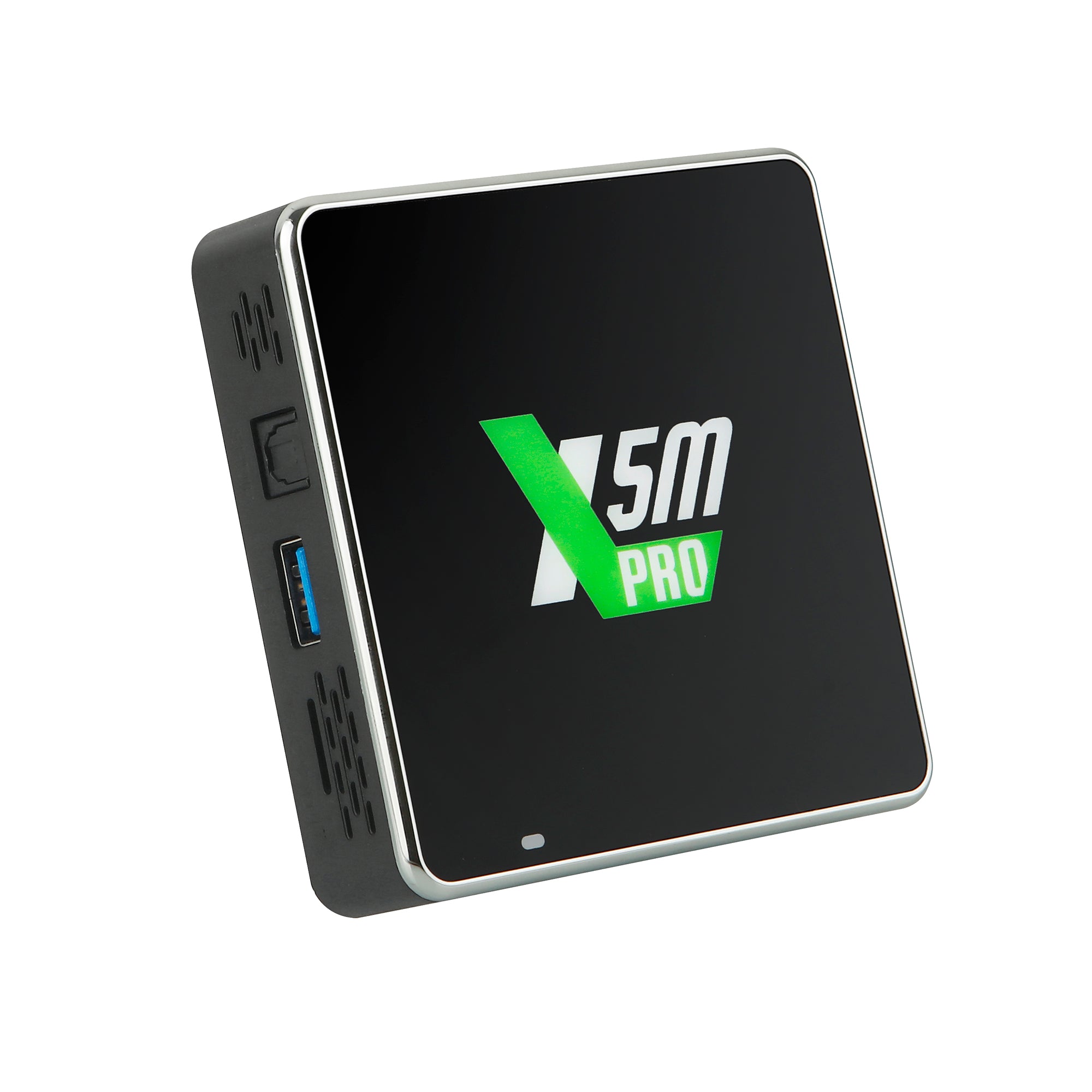

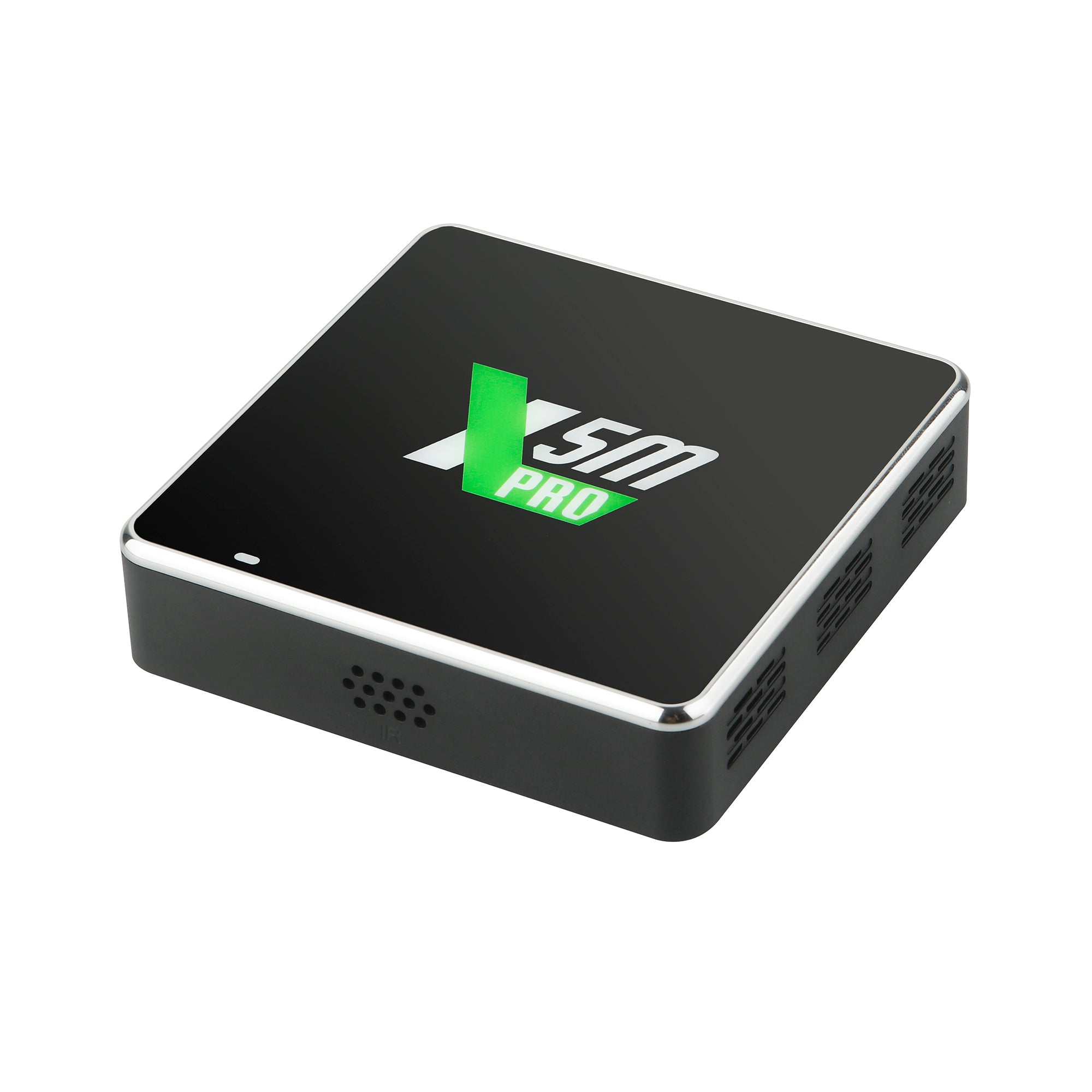

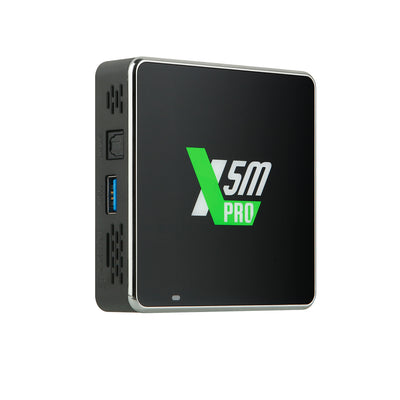

The X5m Pro represent the Fifth Generation of Ugoos X series!

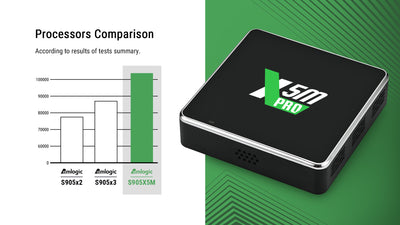

Amlogic S905x5m based device combines all advantages of previous generations and brings new solutions and enhanced technologies.
| Operation System | Android 14.0 |
| Language | Multi-Language support |
| CPU |

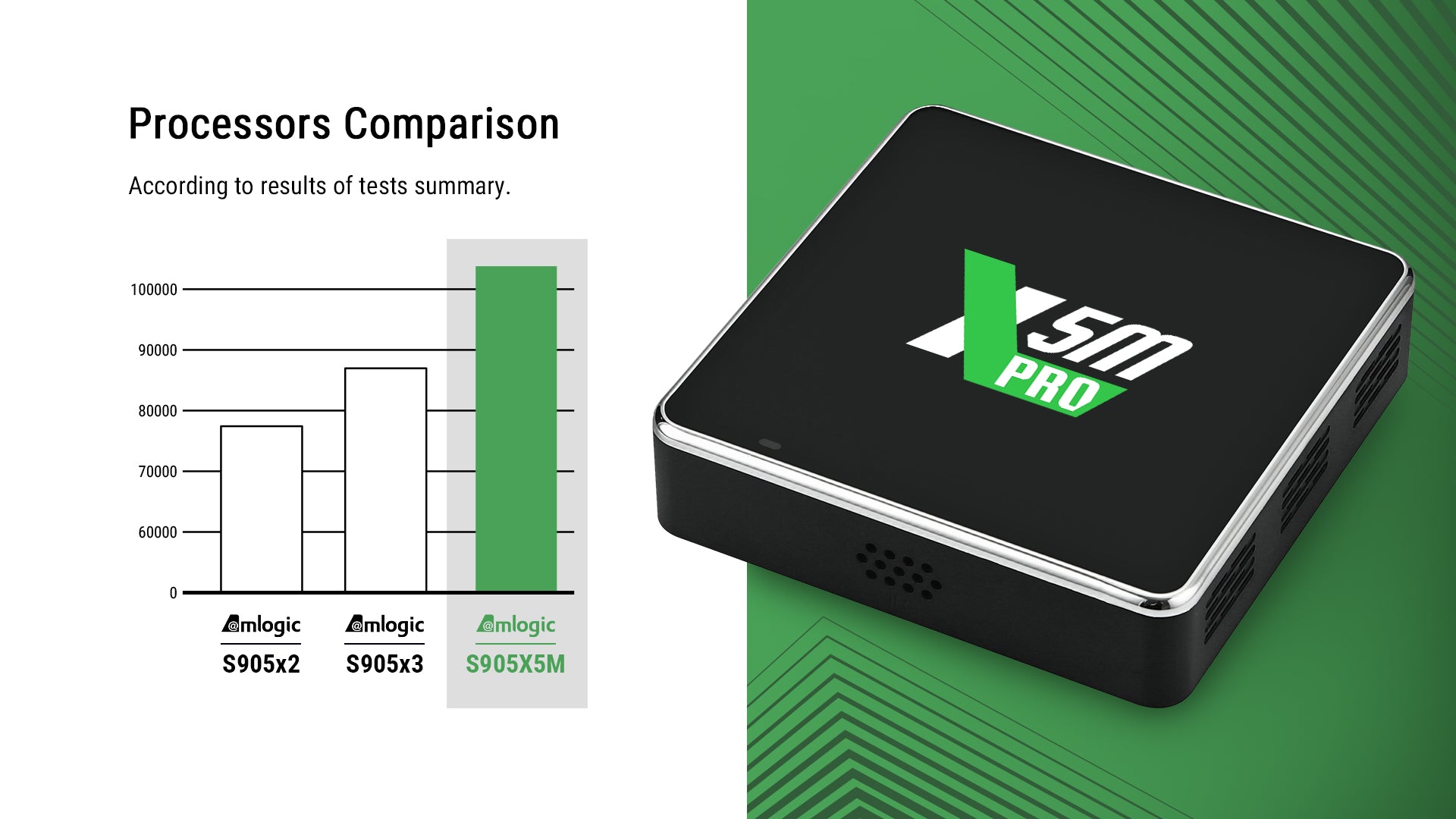

Amlogic S905x5m ARM Cortex-A55 CPU |
|
GPU |
Mali G310 V2 |
| RAM | LPDDR4 4GB |
| Storage Capacity (Flash) | 32GB （EMMC） |
| WIFI |
2.4G/5G 802.11a/b/g/n/ac/ax 2T2R |

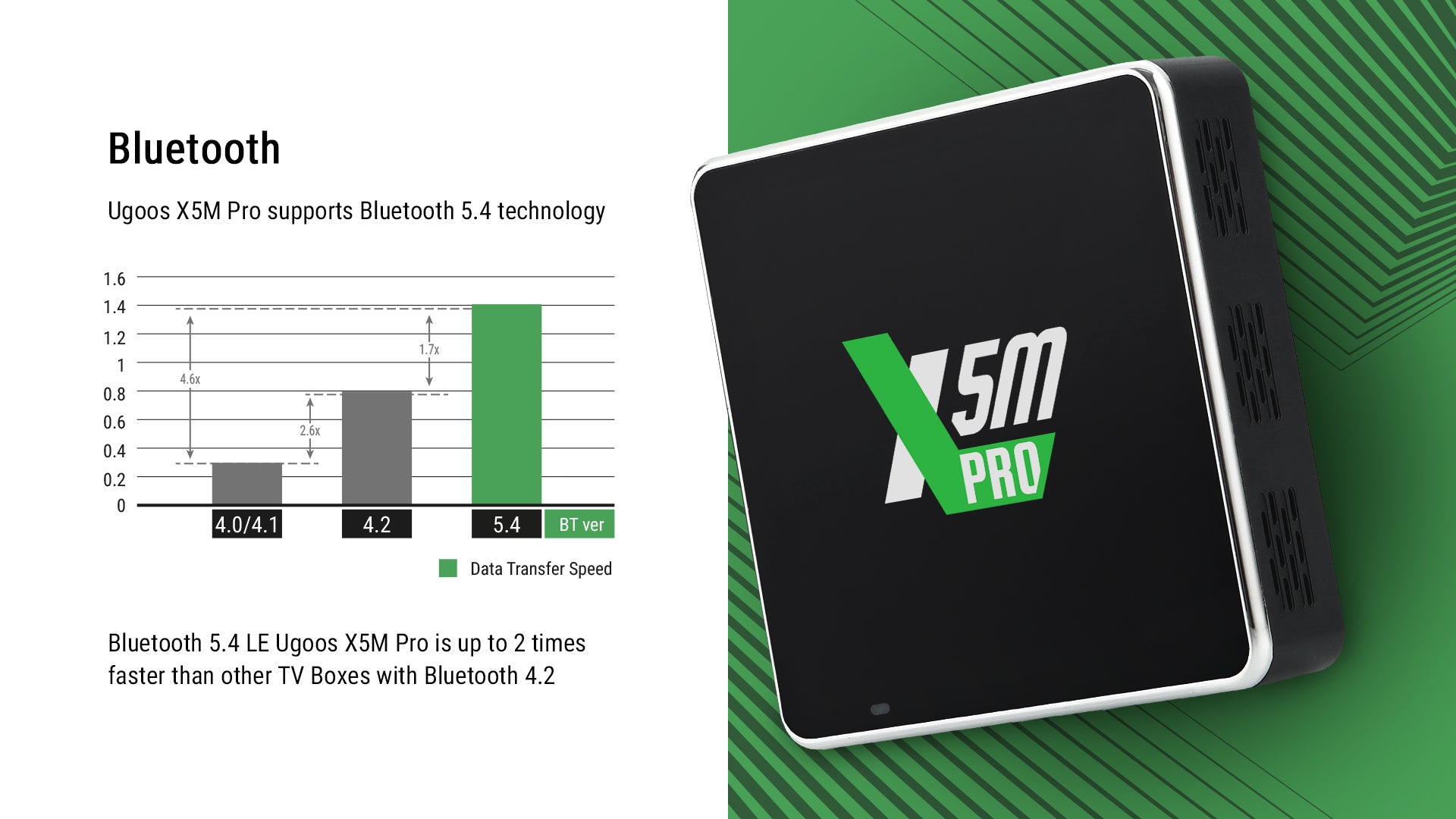

| Bluetooth | Bluetooth 5.4 Module |
| The Extended Storage | TF Card (SD2.X,SD3.X,SD4.X, eMMC ver5.0) |
| Power Supply |
TYPE-C 5V/2.5A |
| HDR | Support |

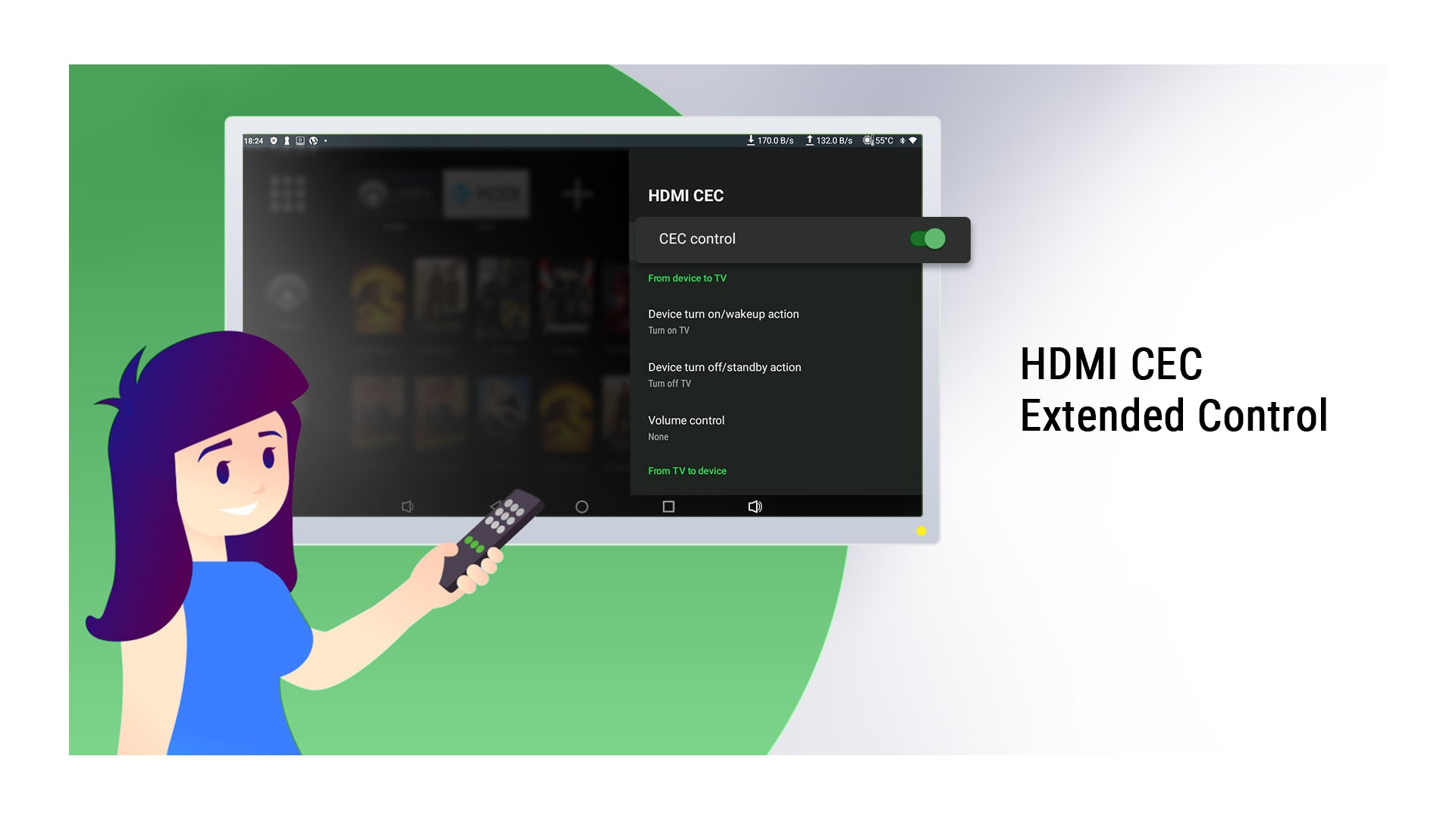

| CEC | Support |
| RTC | Support |

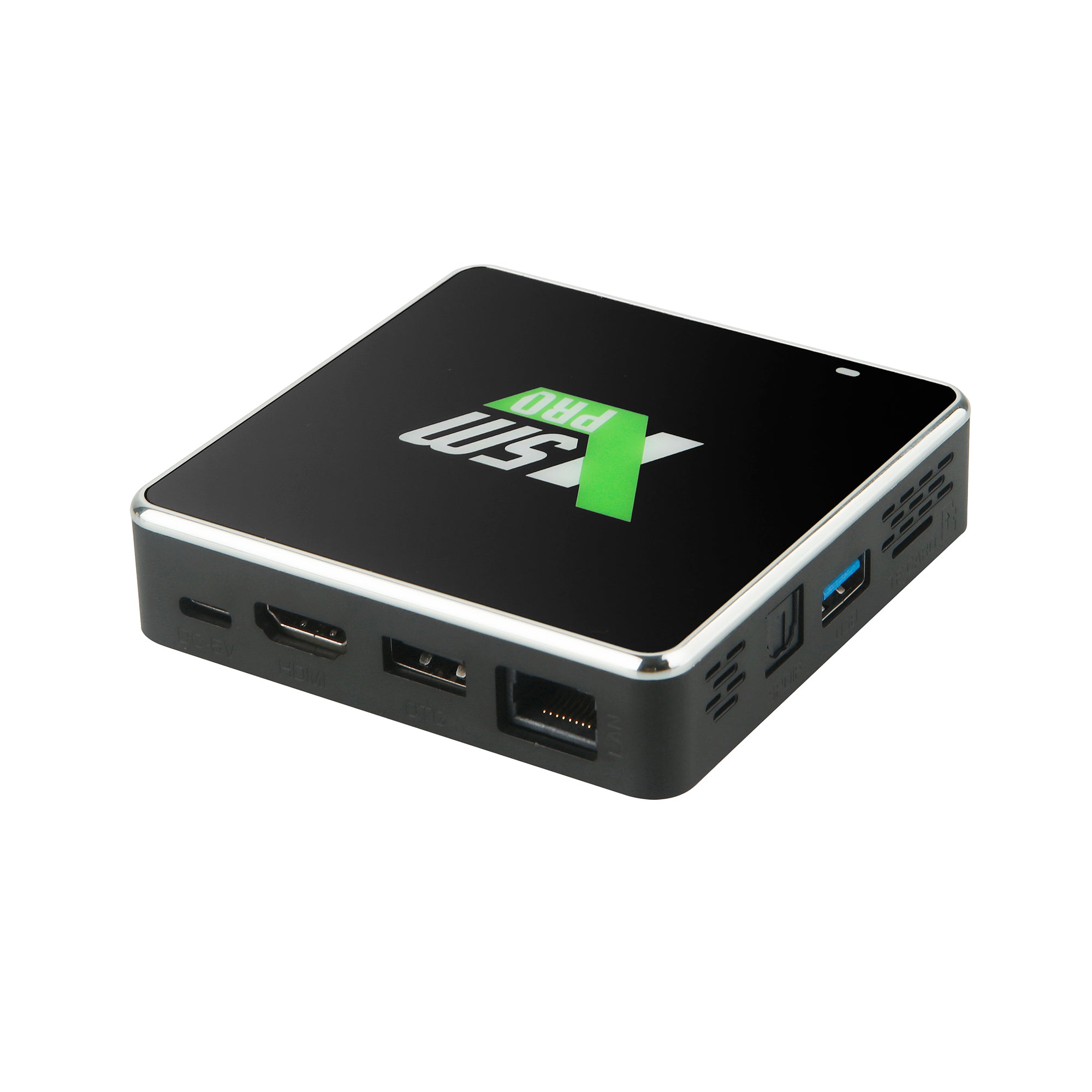

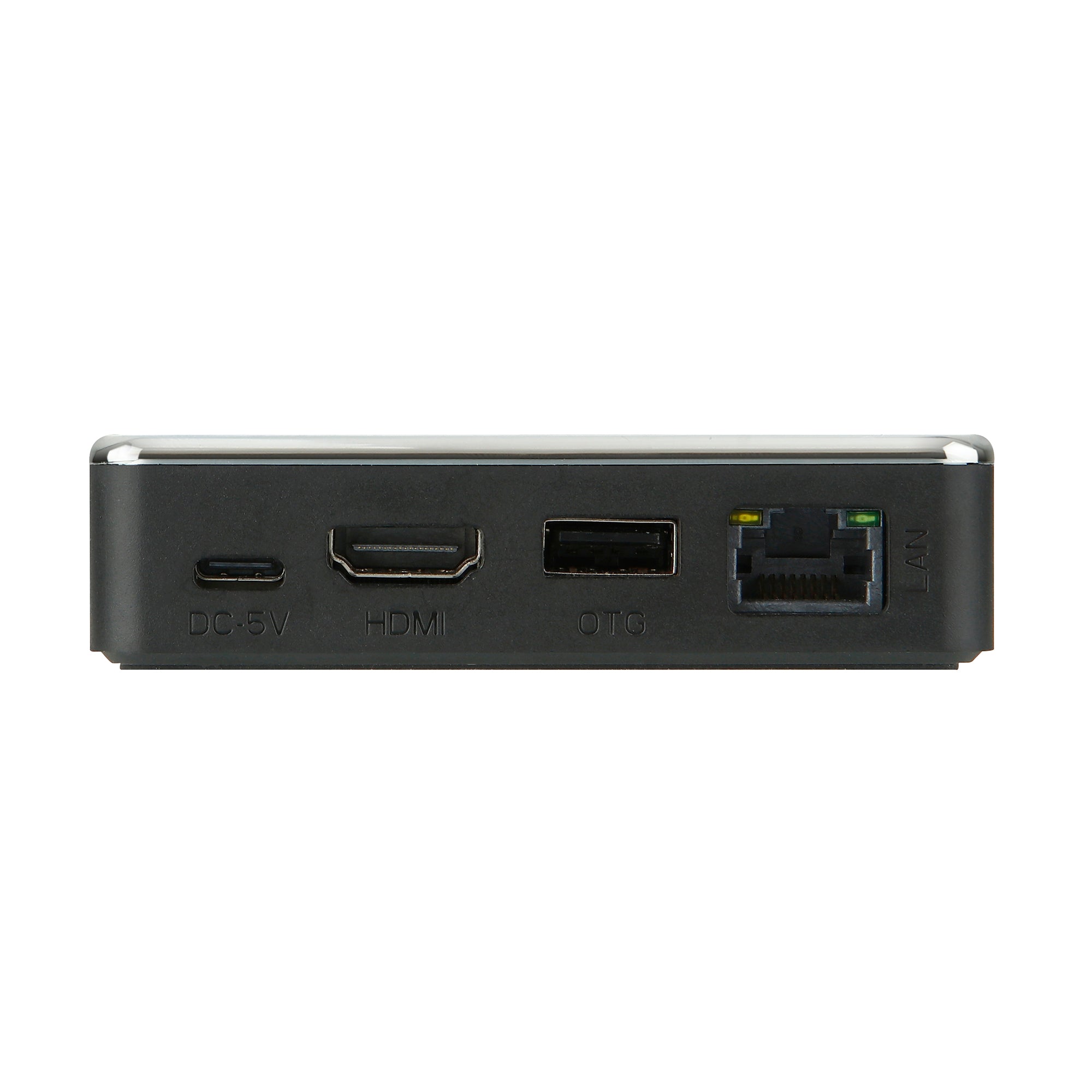

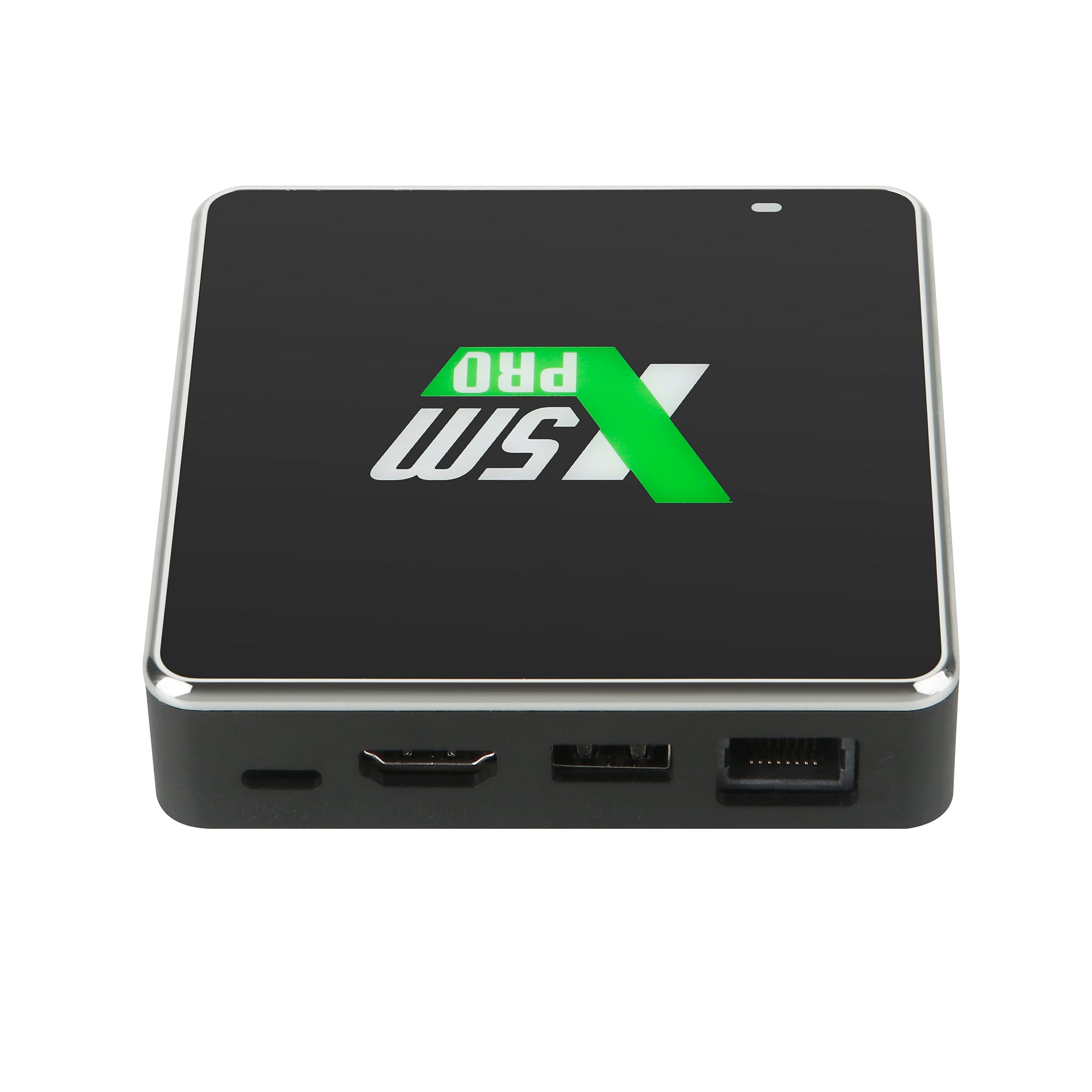

| Interfaces: | |
| HDMI Output |
HDMI(1.4 and 2.1b) supports maximum 4K@60fps output(HDCP2.2) |

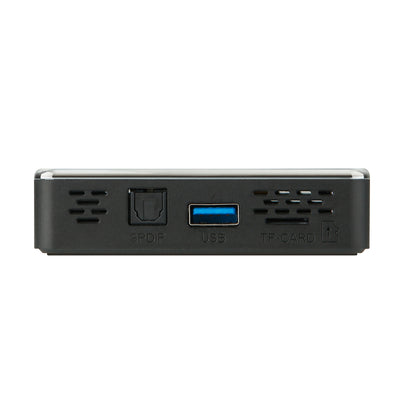

| USB Ports |
1*USB 2.0 OTG + 1*USB 3.0 host |

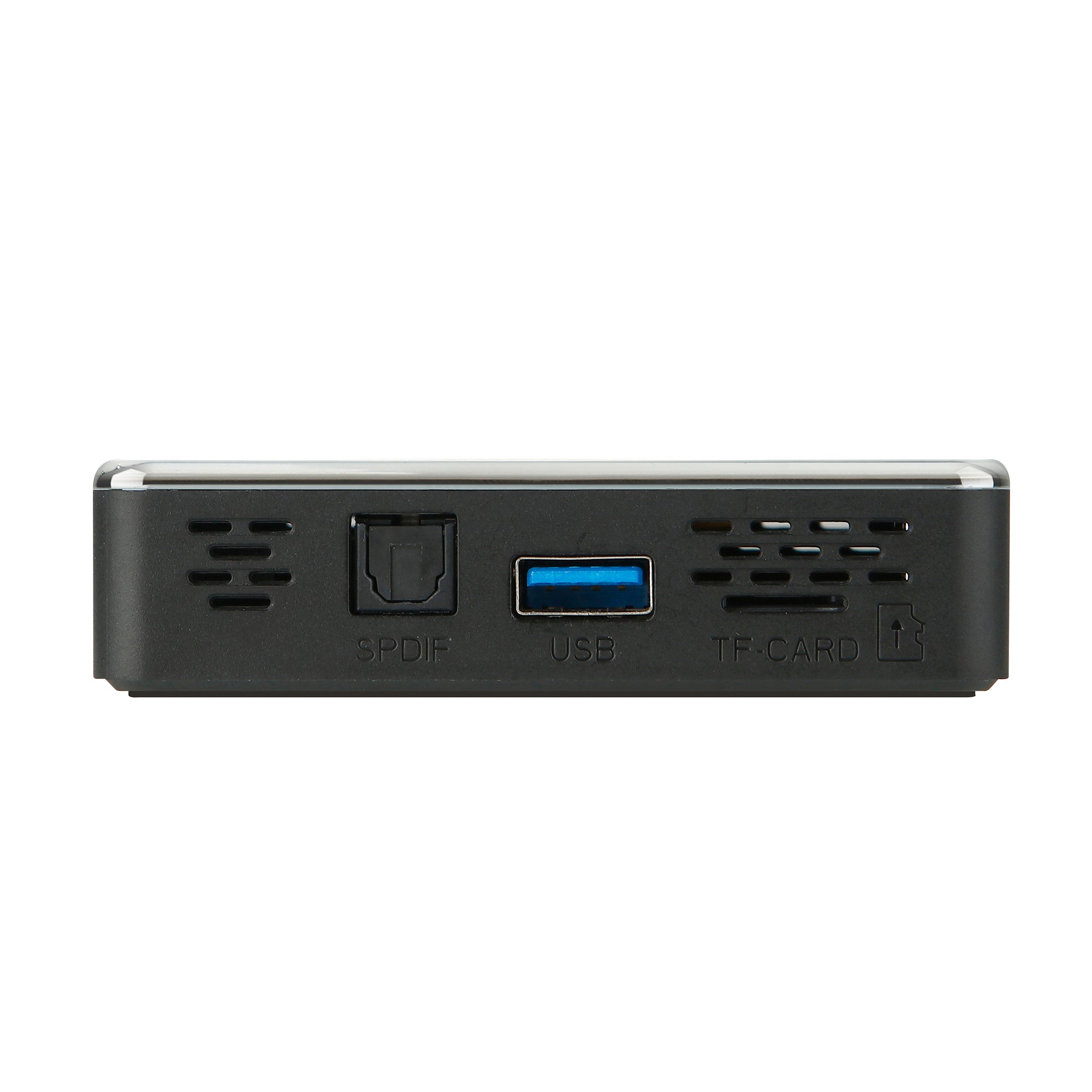

| Optical Output | 1*SPDIF |
| Led Work Light | Support |

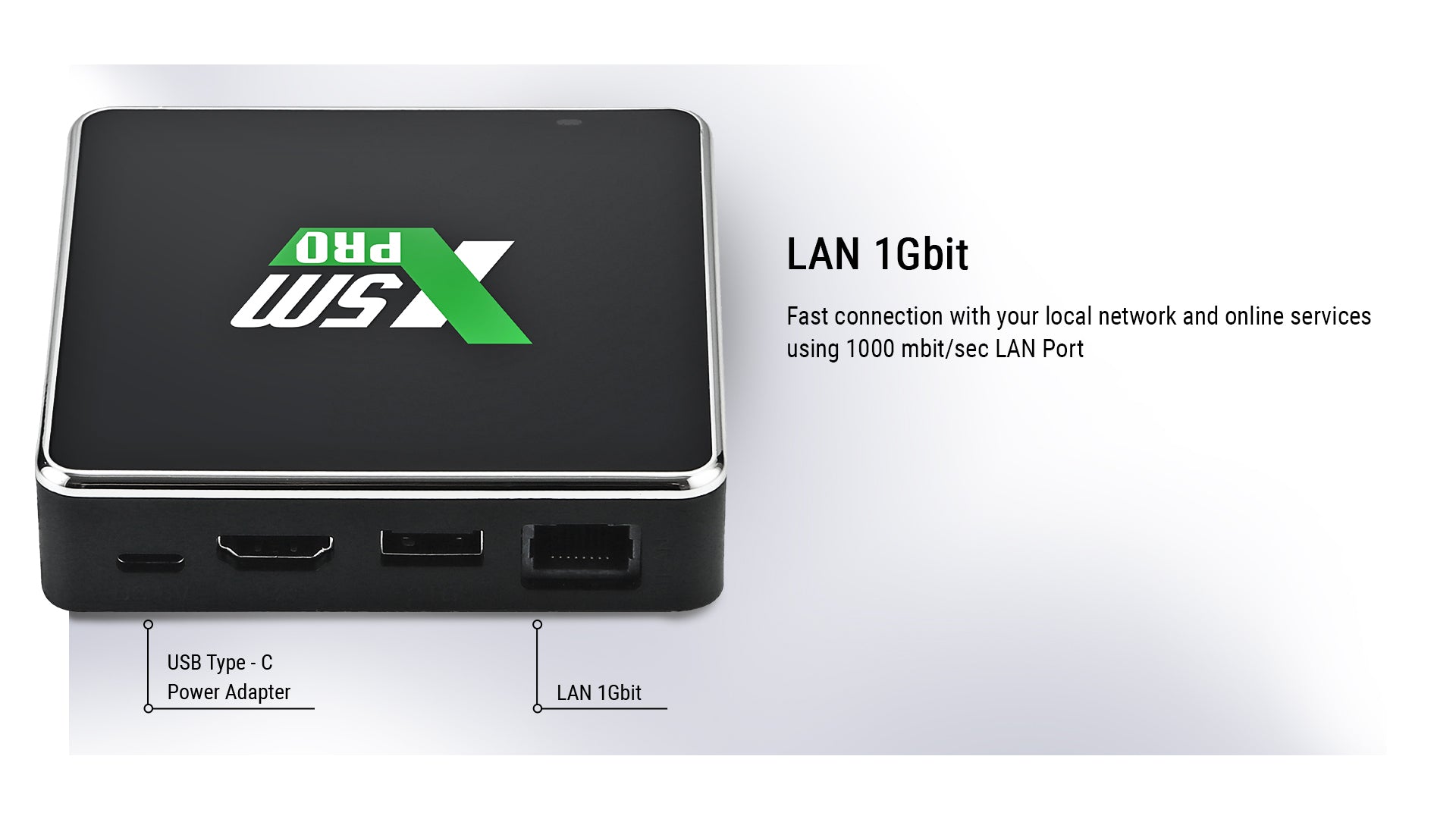

| Network | 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface) |
| Media Parameters: | |
| Audio |
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1 Built-in SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC |
| Video Output |
Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4KX2K |
| Video CODEC |
− AV1 MP-10@L5.1 up to 4Kx2K@60fps − VP9 Profile-2 up to 4Kx2K@60fps − H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps − AVS2-P2 Profile up to 4Kx2K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects |
| Software Extension | Support Google Play & APK install |
| Other Parameters: | |

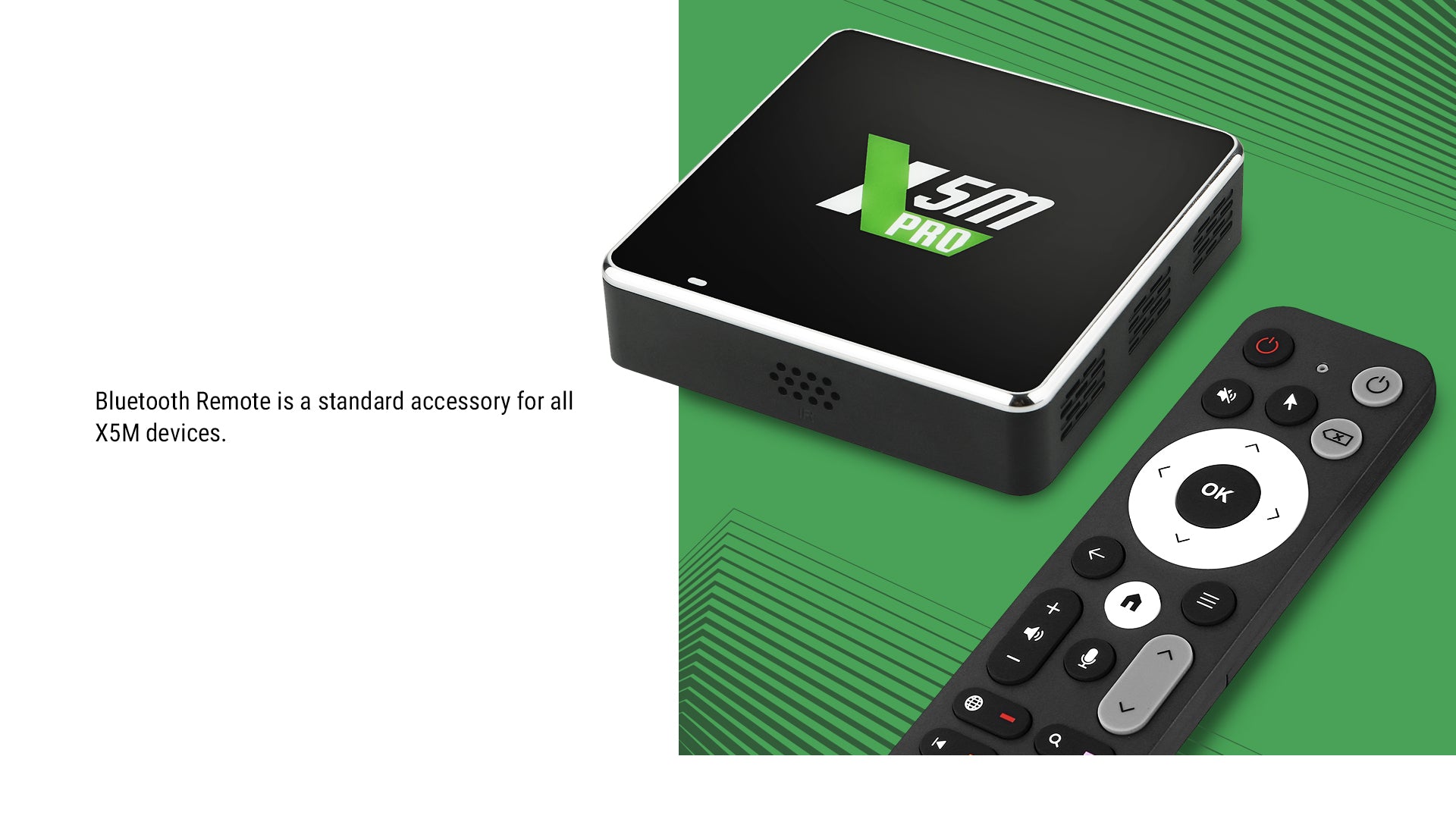

| Remote Control |
BT remote with Voice+Gyro |
| Humidity Environment | 5%-90%(No condensation） |
| Certificates | CCC, CE, FCC, Wi-Fi |

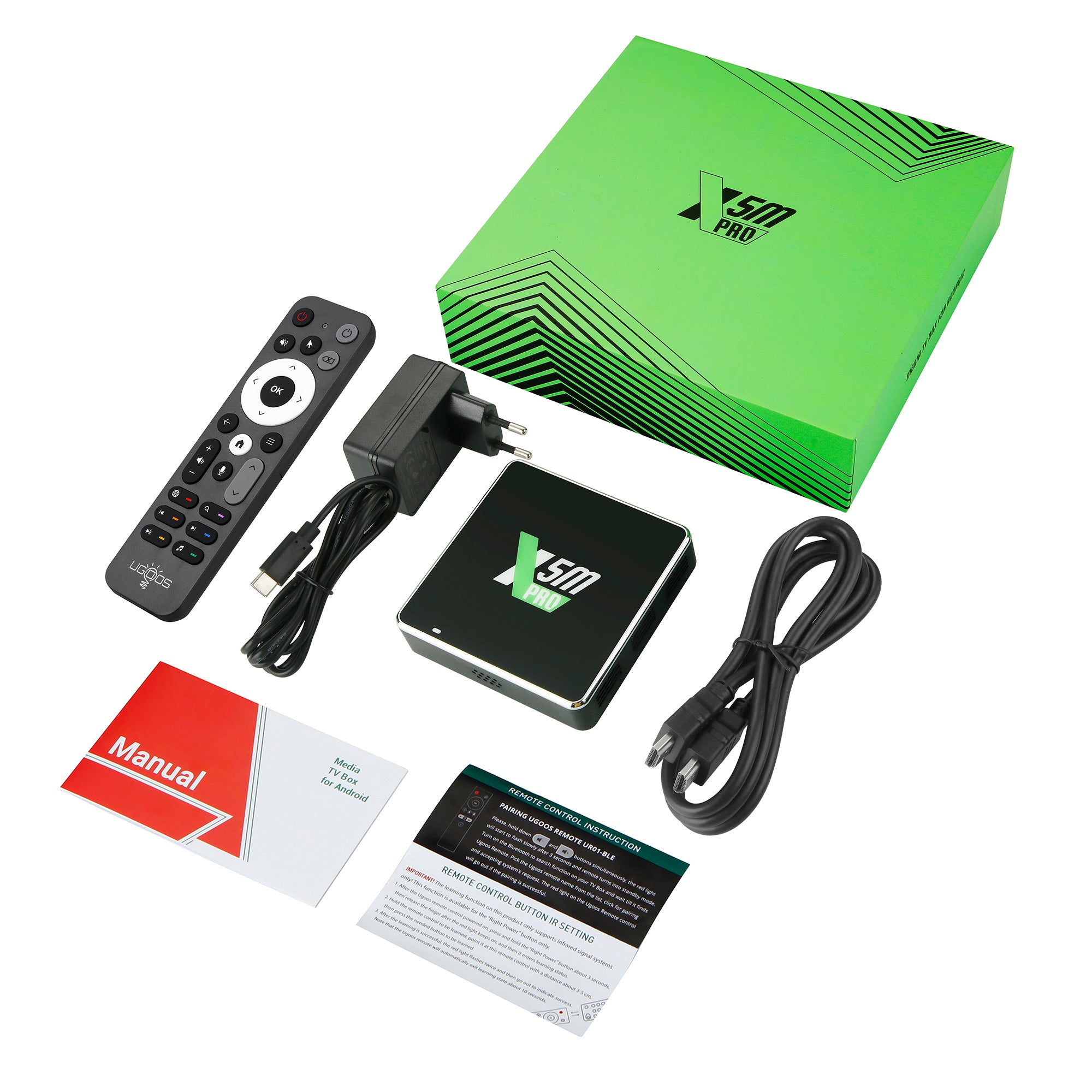

| Package: | |
| Dimensions |
8.8X8.8x2.2 CM |
| Gift Box Size |
18.7x18x4.8 CM |
